About
Specs
Overview
| Exterior Dimensions (H x W x D) |
60.5" x 36" x 22" |
|---|---|
| MIN. DOORWAY WIDTH CLEARANCE TO DELIVER SAFE* |
28" |
| Gun Storage | 64 Long Guns |
PLEASE NOTE: | |
| Fire Rating | 60 MIN. FIRE RATED |
| Body Steel Thickness | 11 gauge |
| Weight | 845 |
| Warranty | Limited Lifetime Transferable |
| Country of Origin | MADE IN THE USA |
| Price Match Guarantee | YES |
We will beat any advertised price on the same product. | |
Dimensions
| Exterior Dimensions (H x W x D) |
60.5" x 36" x 22" |
|---|---|
| Overall Exterior Depth (with handle installed) |
25" |
| Interior Dimensions (H x W x D) |
56.5" x 32" x 14.5" |
| Clear Door | 26.5" |
| FOOTPRINT (W x D) |
36" x 22" |
| Exterior Cubic Feet (safe body only) |
48.1 |
| Interior Cubic Feet | 30.1 |
| Door Swing Projection at 90° | N/A |
| Door Swing Projection at 180° | N/A |
Fire Protection
| Fire Rating | 60 MINUTES @ 1200° F |
|---|---|
| Fire Temp | 1200° Fahrenheit with 10 minute ramp up. Interior temperature did not exceed 350° F |
| Fire Insulation Type | 3 in ceiling, door and door jambs, and 2 in the walls |
| Door Seal | Heat-Activated, Expanding Palusol™ w/ Smoke Seal |
| Smoke Seal | Yes |
Security
| Security Rating | U.L. Listed Residential Security Container (RSC-8M10) |
|---|---|
| Door Bar / Bolt Sides | 4 sided bolt coverage (3 active sides)* |
| Bar / Bolt Count | 8 |

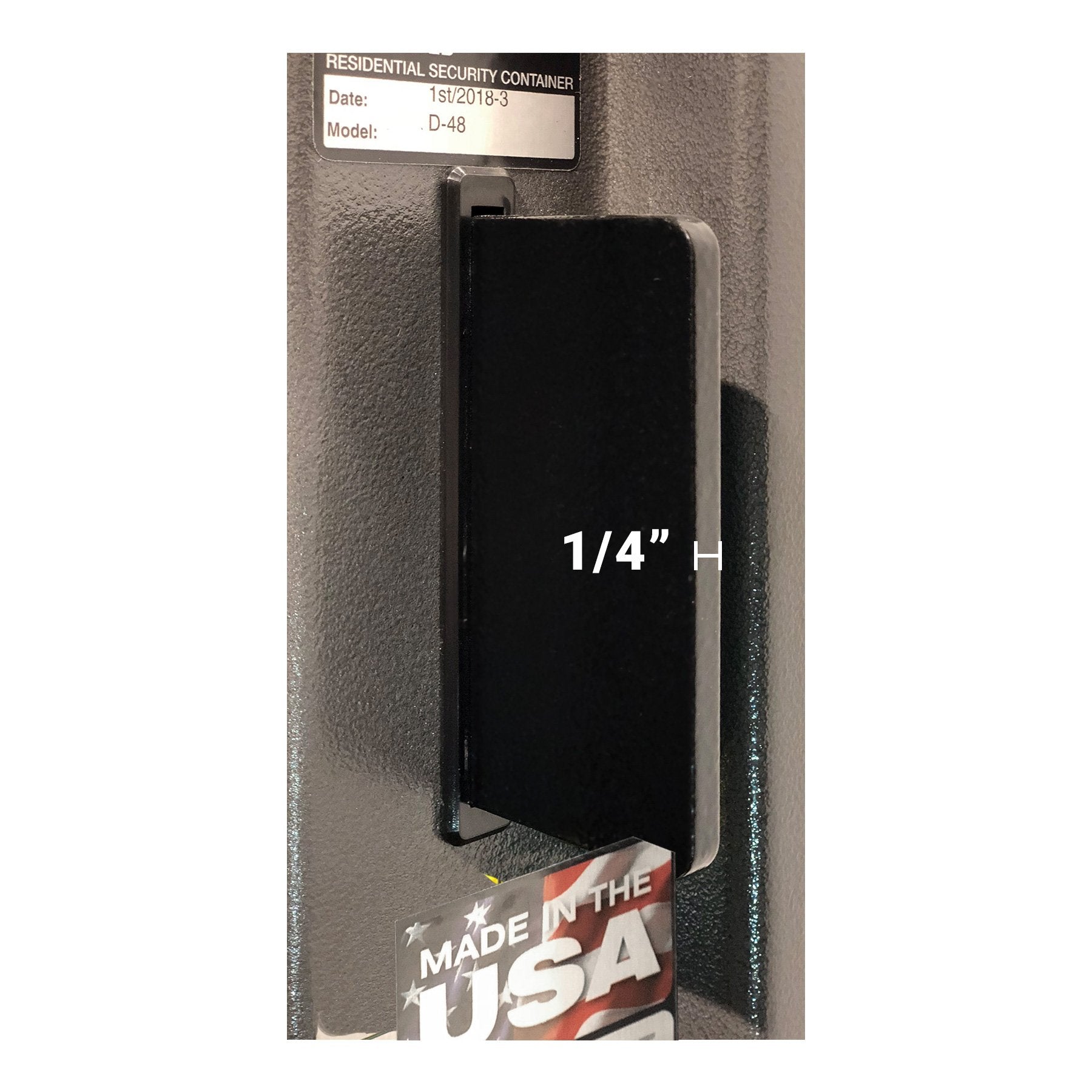

| Bar / Bolt Type | 4-Inch Military Style Locking Bars - 1/4" Thick |
| Locking Mechanism Type | Direct Cam-Drive |
| Door Type | Composite Internal Ball-bearing Hinge with Inner steel band |
| Door Thickness | 4.5" total width including 1" Composite door front |
| Body Steel Thickness | 12 Gauge, 2-piece roll form |
| Total Body Thickness | 1-3/8" Steel and Fireboard |
| Main Lock | U.L. Listed Mechanical Dial or U.L. Listed Electronic Lock |
| Secondary Lock | N/A |
| Relocker Type | Fail-Safe™ Thermal/spring-loaded inside lock plus External spring-loaded |
| Hardplate Lock Protection | Triple RC63 hardplates |
| Anchor Holes | (4) 5/8" Floor |
Style
| Exterior Finish | Powder Coat |
|---|---|
| Fabric Type | Gray Fabric |
| Upholstery | Fully Upholstered |
| Handle Style | 3-Spoke SURETIGHT |

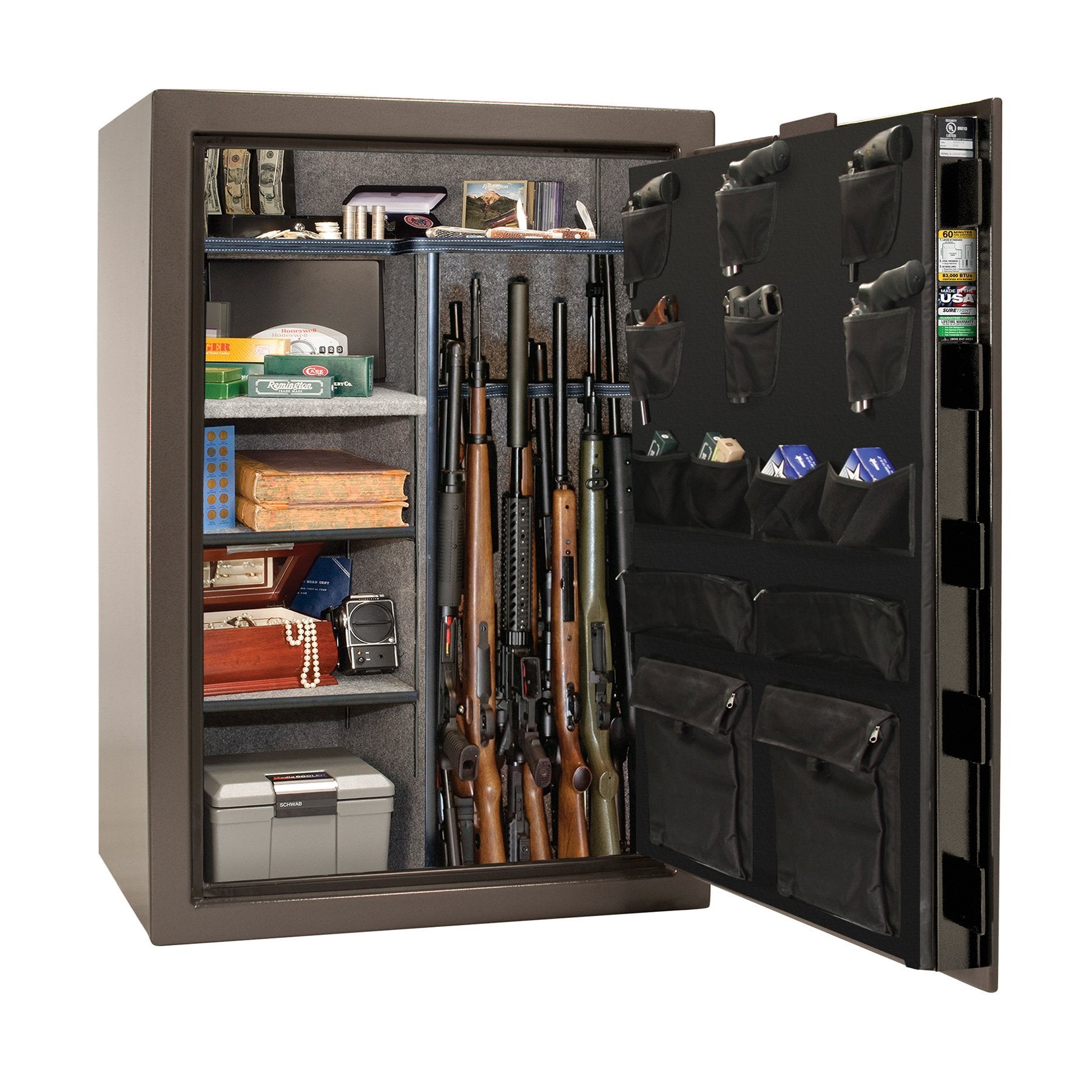

| Interior Type | 3-in-1 Flex |
| Power Access Hole | Yes |
| Interior Lighting | optional |
| Door Panel | Yes, Economy style (no COOL POCKET) |
